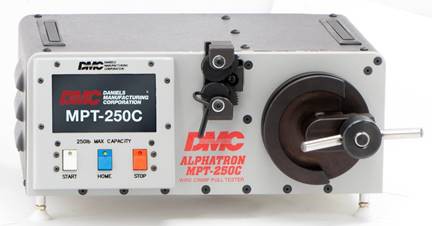

Motorized Tensile Wire Crimp Pull Tester, 250 Lbs
Product Description
- 2 Test Types: "Pull to Fail" and "Force Hold"
- Data Capture (measures continuous and peak force holds)
- Intuitive Full Color Touchscreen LCD User Interface
- Easy Setup, Operation, and Grip Change
- Force Measurement Range: 2.5 - 250.0 lbf (113kgf or 1112.0N)
- Force Measurement Resolution: 0.1 (lbf, kgf, N)
- Force Measurement Accuracy: +/- 0.5% Full Scale
- Force Readout in Pounds Force, Newtons, Kilograms Force (lbf, N, kgf)
- Safe Force Overload: 150% of Full Scale
- Pull Rate Speeds: 1 to 10 inches per minute (in / min)
- Pull Rate / Speed Accuracy: 1-5 +/- 0 .125 in/min, 6-10 +/- 0.250 in/min
- Pull to Fail - Test Force Range: 2.5 - 250 lbf
- Force Hold - Test Force Range: 5 - 100 lbf
- Force Hold - Test Force Hold Accuracy: -2.3 to +2.3 lbs for force < 30 lbs, -4.5 to +3.3 lbs for force >= 30 lbs
- Accommodates Most 10 AWG - 26 AWG Wire
- Communication Ports: Serial RS-232 (DB9 female connector), USB 2.0
- Power Requirements: IEC Connector, 100 - 240VAC, 50/60Hz, 25 Watts maximum (International Power Cords Available)
- External Fuse Type and Rating: Type 3AG (6.3 X 32mm) 1A time delay, 250VAC
- Weight 23.64 lbs (less options)
- Shipping Weight ≈ 40.6 lbs (with typical / standard grips)
- Case Weight 16.12 lbs
- Base Dimensions: 13.3" Wide x 6" High x 11" Deep
- Self-Tightening Cam-Type (Contact) Grip (P/N 15-3202C) *
- Heavy-Duty Swivel Lockdown Upper Grip (P/N 15-3046) *
- Ring Terminal Grip (P/N 15-0066C)
- Miniature Contacts Grip (P/N 15-3314)
- Slotted Terminal Grip (P/N 15-3087C)
- Safe-T-Cable Grip Set (P/N 15-3318)
- Calibration Verification Fixture (MPT-VF)
- Customized Grips are available for specific applications
Details
| DMC P/N: | MPT-250C |
| Name: | Motorized Tensile Wire Crimp Pull Tester, 250 Lbs |
| Weight: | 40.60 LBS |
| PDF's Available: |
STANDARD FEATURES
PHYSICAL
STANDARD and OPTIONAL ACCESSORIES
* Standard / Shipped with Unit and Installed
Additional Information
Additional Information
| DMC P/N | MPT-250C |
|---|---|
| MILITARY P/N | No |
