Common Hex Dies for HX4, HXE4B, HX23 & HD37
|
Non-military dies are available for a range of applications. Contact DMC for Details.
|
DIE P/N
|
DIE CLOSURE DIMENSIONS
|
DMC
P/N ♦
|
MILITARY
P/N
|
NATIONAL STOCK
NUMBER
|
A
HEX.
|
LENGTH
|
B
HEX.
|
LENGTH
|
| HX4 |
M22520/5-01 |
5120-01-335-8575 |

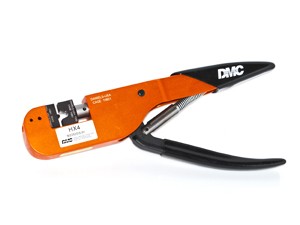

Standard Crimp Tool Frame |
| HXE4B |
N/A |
N/A |
Battery Powered Hydraulic Crimp Tool Frame |
| HX23 |
N/A |
N/A |
Pneumatic Crimp Tool Frame |
| HD37 |
N/A |
N/A |
Hydraulic Crimp Tool Frame |
| Y200P |
M22520/5-02 |
5120-01-335-8244 |
.091 |
.090 |
.068 |
.270 |
| Y196 |
M22520/5-03 |
5120-01-335-8245 |
.128 |
.325 |
.105 |
.325 |
| Y152 |
M22520/5-04 |
5120-01-335-8246 |
.138 |
.090 |
.118 |
.270 |
| Y197 |
M22520/5-05 |
5120-01-335-8247 |
.213 |
.325 |
.178 |
.325 |
| Y203 |
M22520/5-06 |
5120-01-335-8248 |
.128 |
.094 |
|
|
| Y195 |
M22520/5-07 |
5120-01-335-8249 |
.255 |
.325 |
|
|
| Y215 |
M22520/5-08 |
5120-01-335-8250 |
.128 |
.375 |
|
|
| Y204P |
M22520/5-09 |
5120-01-335-8251 |
.178 |
.400 |
.068 |
.093 |
| Y189 |
M22520/5-10 |
5120-01-335-8252 |
.160 |
.400 |
|
|
| Y205P |
M22520/5-11 |
5120-01-335-8253 |
.213 |
.400 |
.068 |
.093 |
| Y206P |
M22520/5-13 |
5120-01-335-8254 |
.255 |
.400 |
.068 |
.093 |
| Y207P |
M22520/5-15 |
5120-01-335-8255 |
.263 |
.400 |
.068 |
.093 |
| Y193 |
M22520/5-17 |
5120-01-335-8256 |
.118 |
.375 |
|
|
| Y142 |
M22520/5-19 |
5120-01-335-8257 |
.255 |
.400 |
.213 |
.400 |
| Y149 |
M22520/5-21 |
5120-01-335-8258 |
.475 |
.400 |
|
|
| Y145 |
M22520/5-23 |
5120-01-335-8259 |
.384 |
.400 |
|
|
| Y110P |
M22520/5-25 |
5120-01-335-8260 |
.429 |
.400 |
.100 |
.120 |
| Y151 |
M22520/5-27 |
5120-01-335-8261 |
.532 |
.400 |
|
|
| Y109P |
M22520/5-29 |
5120-01-335-8262 |
.324 |
.400 |
.100 |
.120 |
| Y150 |
M22520/5-31 |
5120-01-335-8263 |
.501 |
.400 |
|
|
| Y136 |
M22520/5-33 |
5120-01-335-8264 |
.343 |
.400 |
.105 |
.400 |
| Y137 |
M22520/5-35 |
5120-01-335-8265 |
.324 |
.400 |
.128 |
.400 |
| Y138 |
M22520/5-37 |
5120-01-335-8266 |
.314 |
.400 |
.151 |
.400 |
| Y139 |
M22520/5-39 |
5120-01-335-8267 |
.309 |
.400 |
.160 |
.400 |
| Y140 |
M22520/5-41 |
5120-01-335-8268 |
.290 |
.400 |
.178 |
.400 |
| Y141 |
M22520/5-43 |
5120-01-335-8269 |
.268 |
.400 |
.197 |
.400 |
| Y143 |
M22520/5-45 |
5120-01-335-8270 |
.231 |
.400 |
.218 |
.400 |
| Y144 |
M22520/5-47 |
5120-01-335-8271 |
.359 |
.400 |
|
|
| Y146 |
M22520/5-49 |
5120-01-335-8292 |
.401 |
.400 |
|
|
| Y147 |
M22520/5-51 |
5120-01-335-8293 |
.431 |
.400 |
|
|
| Y148 |
M22520/5-53 |
5120-01-335-8294 |
.454 |
.400 |
|
|
| Y102 |
M22520/5-55 |
5120-01-335-8295 |
.324 |
.400 |
|
|
| Y209P |
M22520/5-57 |
5120-01-335-8296 |
.213 |
.400 |
.100 |
.120 |
| Y208P |
M22520/5-59 |
5120-01-335-8297 |
.255 |
.400 |
.100 |
.100 |
| Y178 |
M22520/5-61 |
5120-01-335-8298 |
.429 |
.400 |
|
|
| Y314P |
M22520/5-63 |
5120-01-335-8299 |
.263 |
.400 |
.091 |
.091 |
| Y501 |
M22520/5-100 |
5120-01-335-8300 |
Pre-Insulated Terminal Crimp 26-10 AWG |
| Y527 |
M22520/5-101 |
5120-01-335-8301 |
Pre-Insulated Splice Crimp 26-20 AWG |
| Y539 |
M22520/5-102 |
5120-01-335-8302 |
Splice Crimp 12-16 AWG |
| Y540 |
M22520/5-103 |
5120-01-335-8303 |
Splice Crimp 16-26 AWG |
| Y631 |
M22520/5-105 |
5120-01-361-9554 |
.218 |
.307 |
|
|
| ♦ Die part numbers ending in "P" indicate the the die set has an alignment pin. |
